DIESEL ENGINES

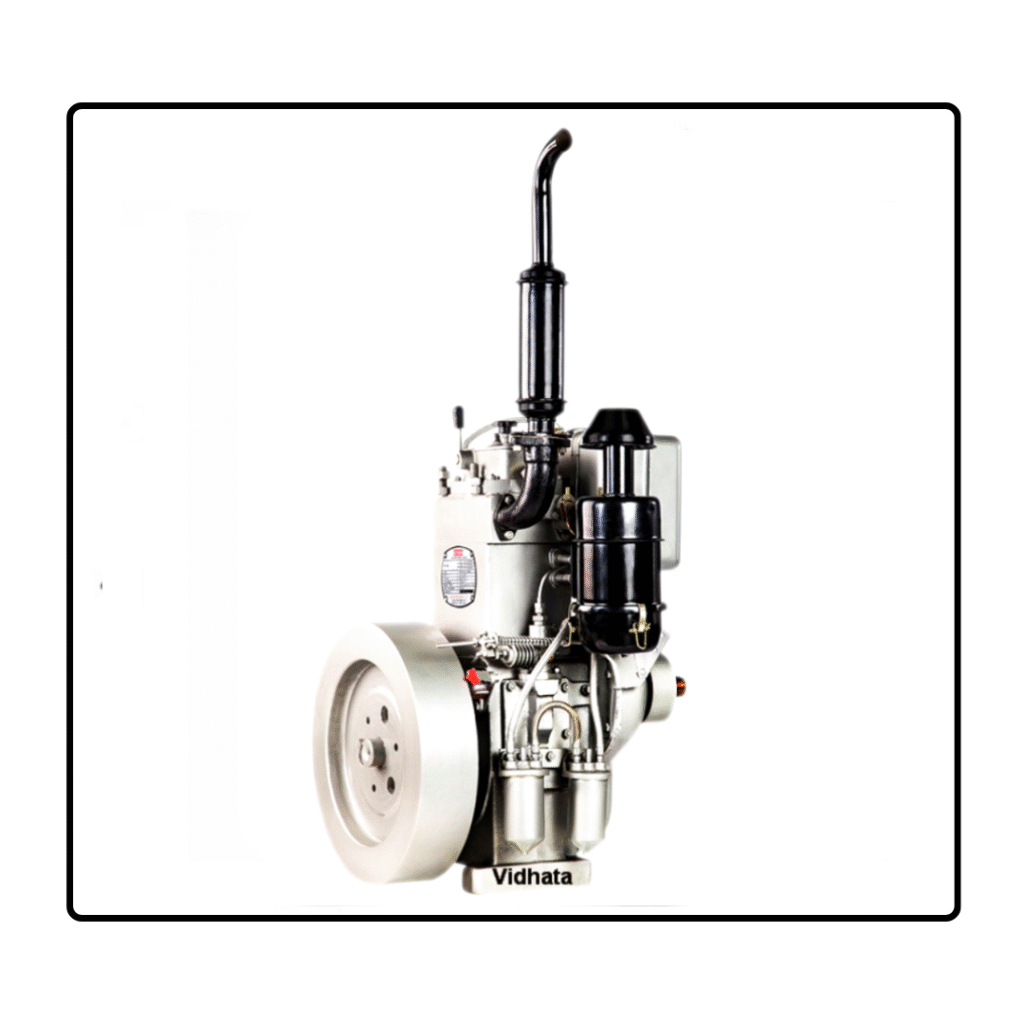

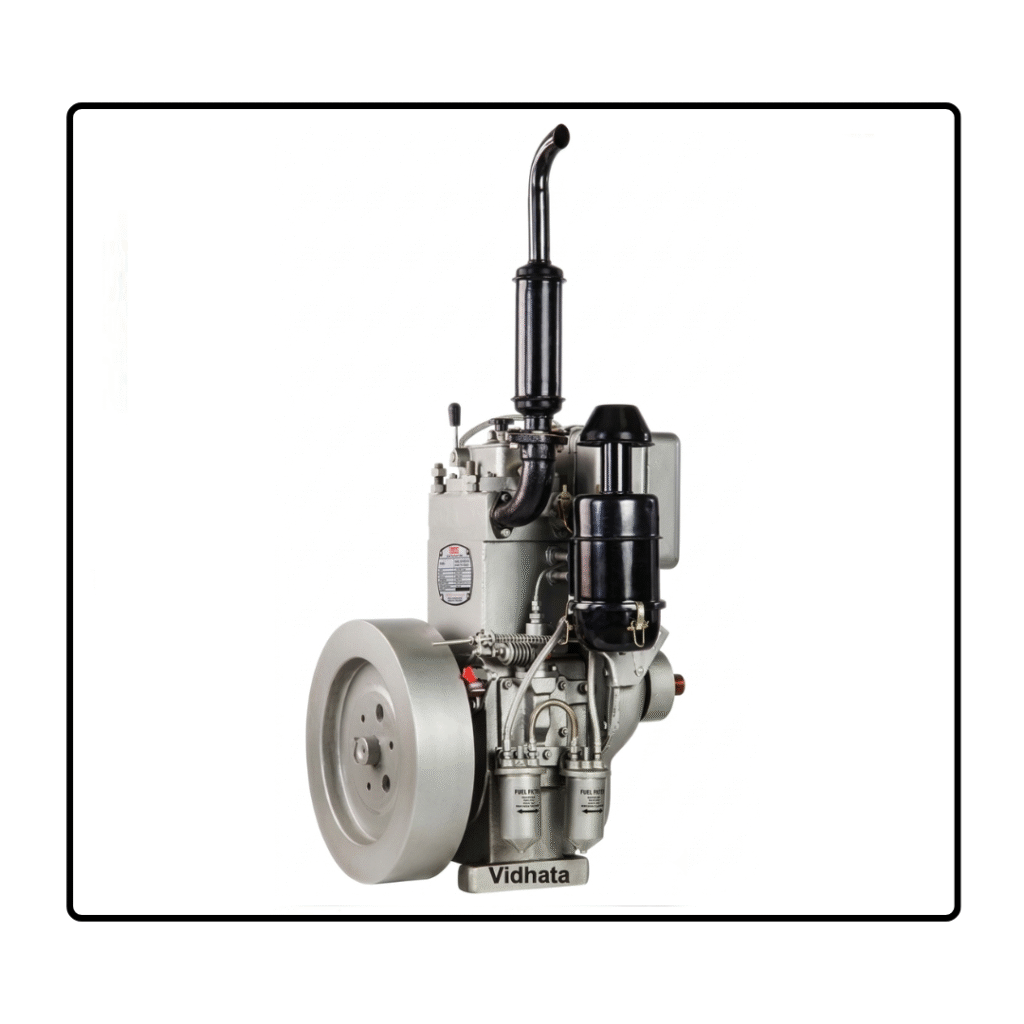

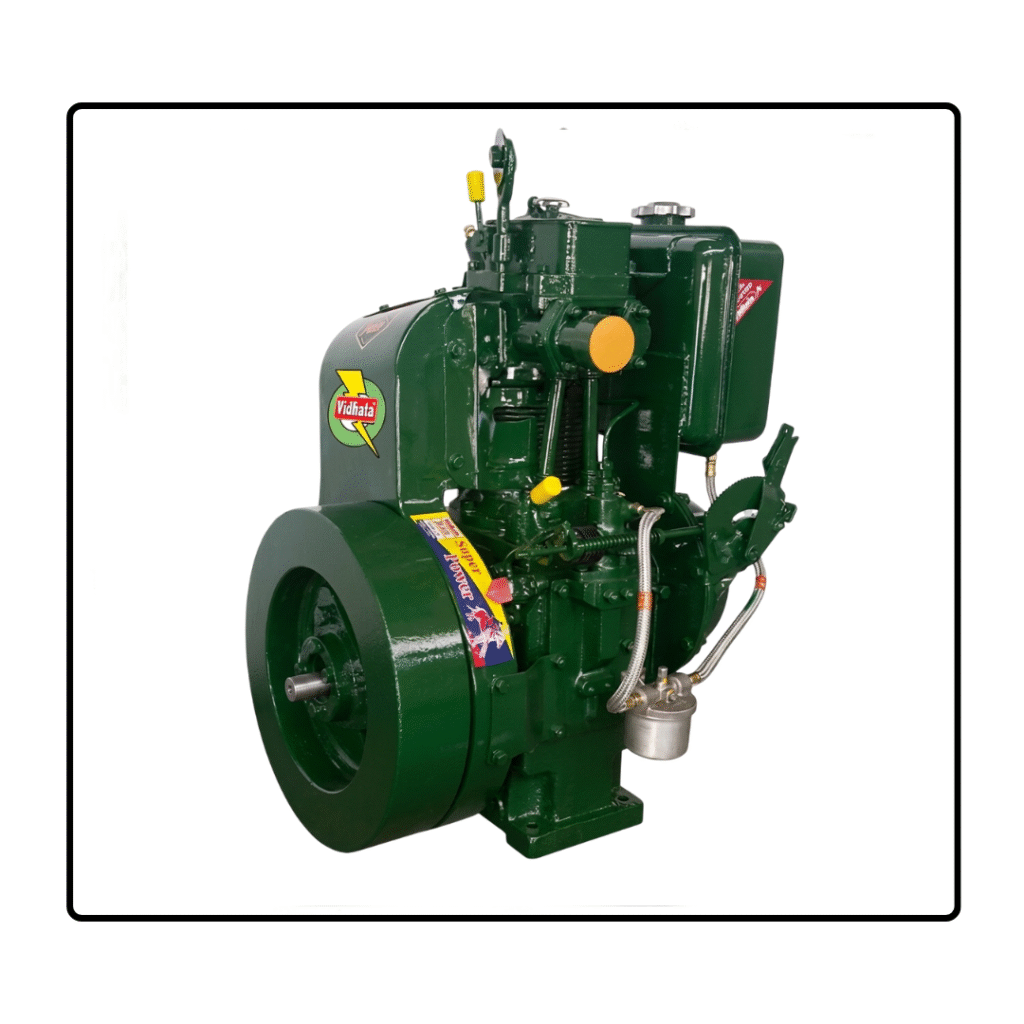

15 H.P Baadshah Single cylinder
water cooled

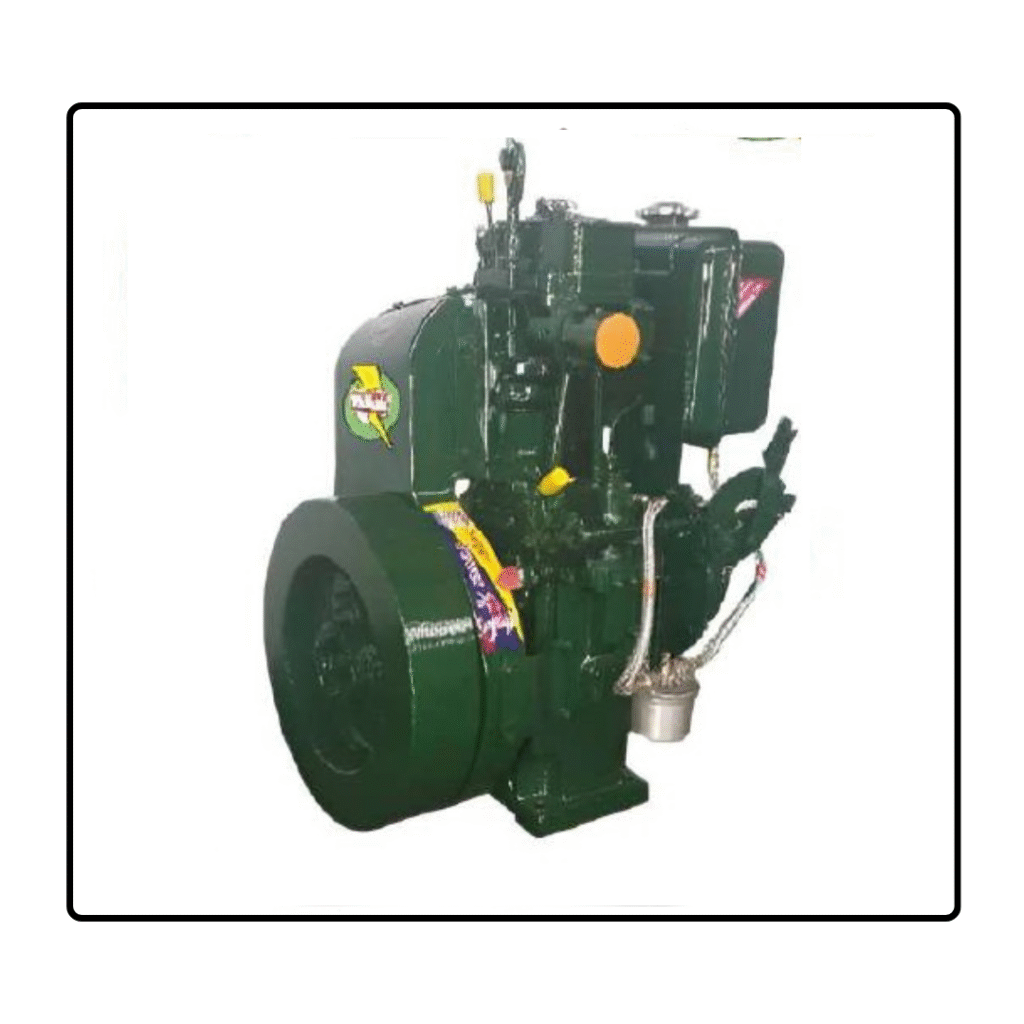

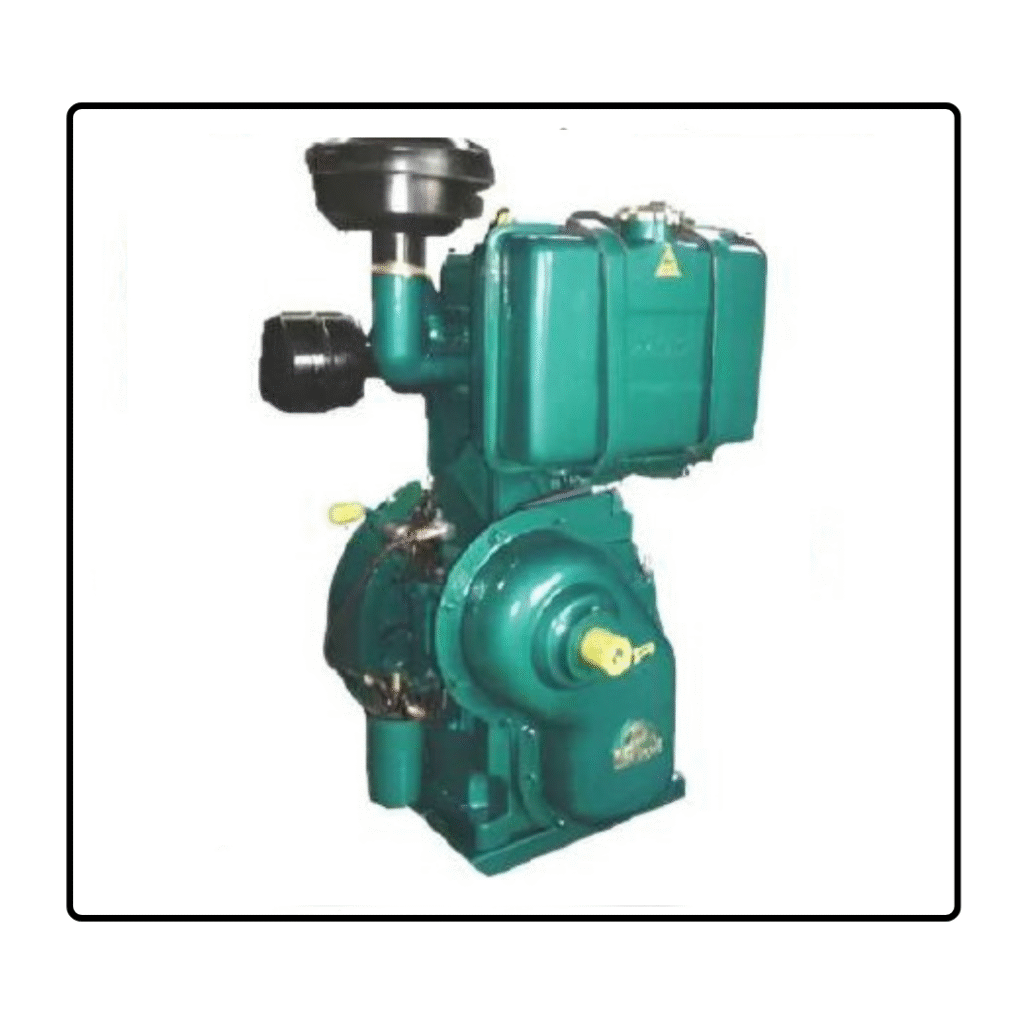

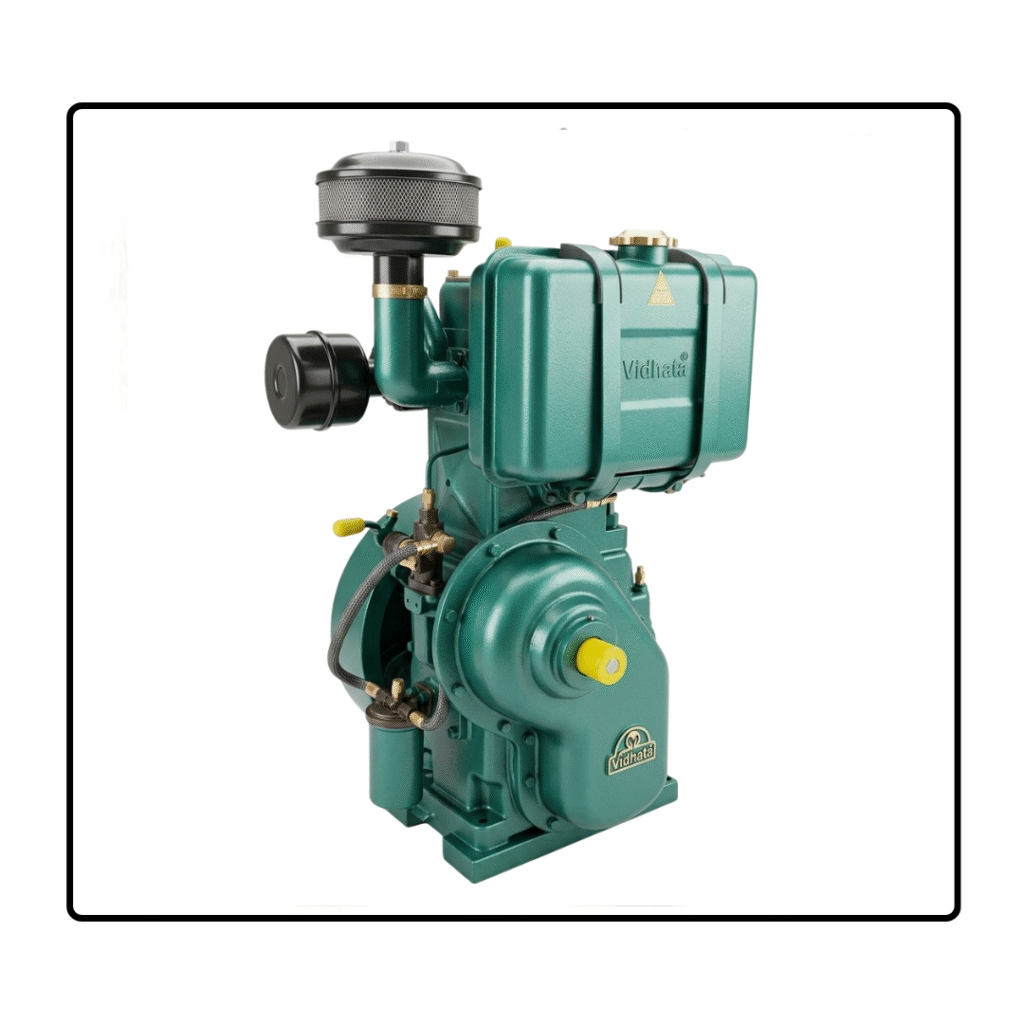

4.5 H.P - 14 H.P Single cylinder Air cooled

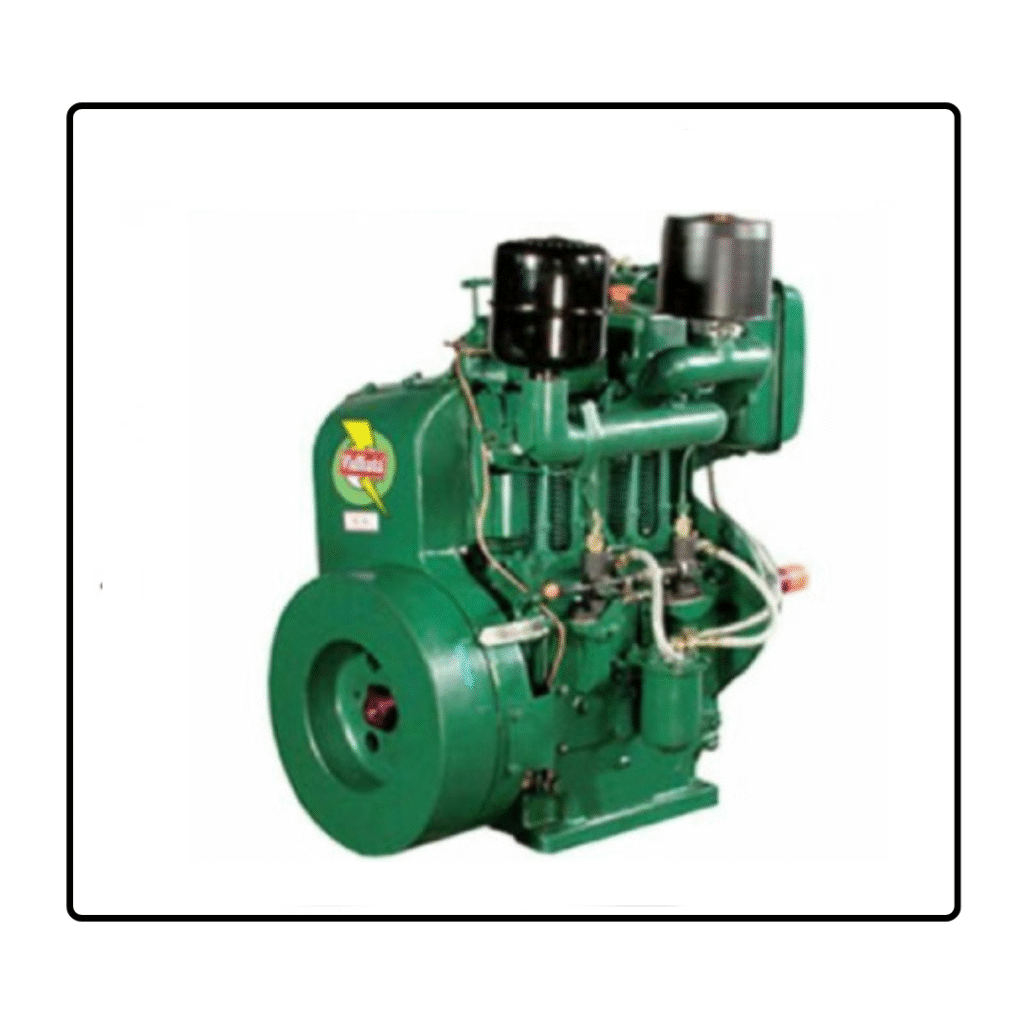

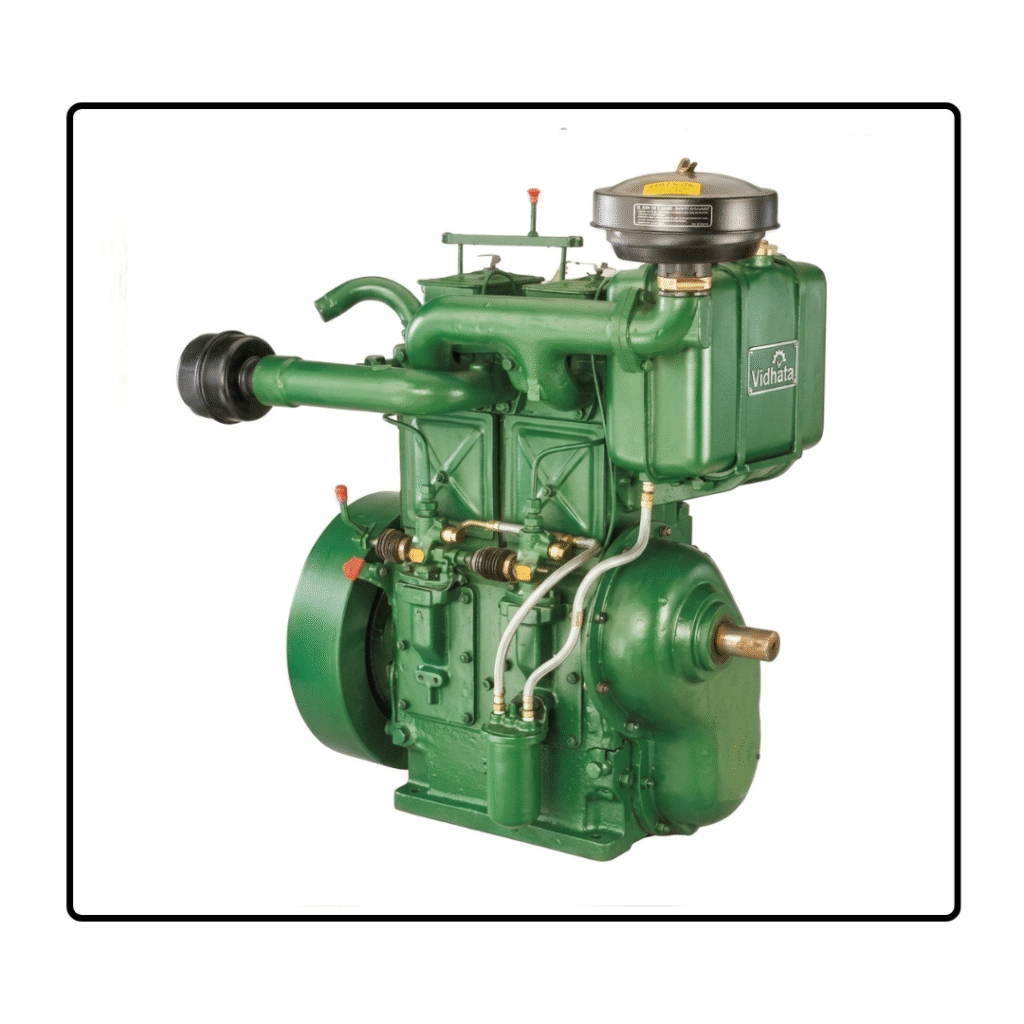

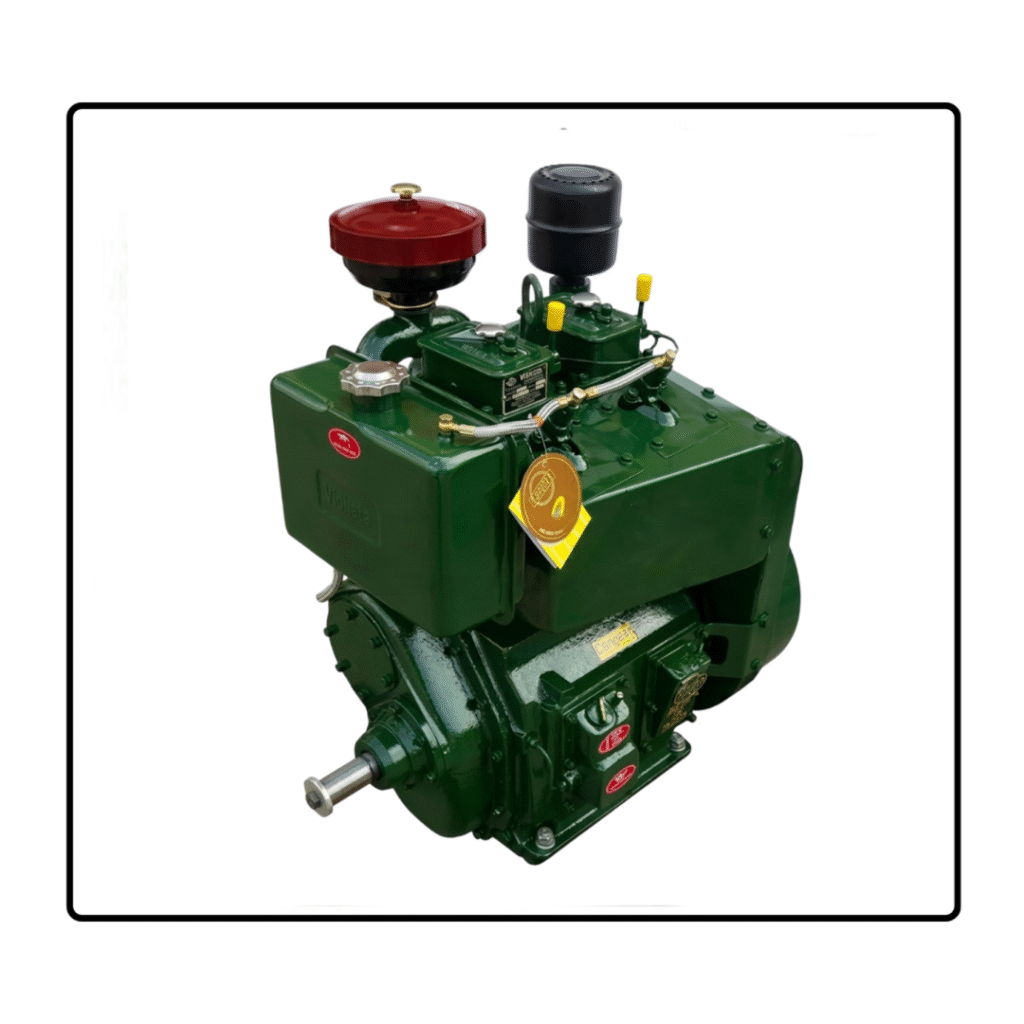

16 H.P - 28 H.P Double cylinder Air cooled

Features:

  • HIGH SPEED DIESEL ENGINES 1500RPM.
  • LUB OIL CAPACITY = 3.5Ltr.(Single cyl.), 6.5ltr.(Double cyl).
  • LUB OIL CONS. = 1% OF SPEC FUEL CONS.
  • CLOCKWISE (While facing the flywheel).
  • HANDLE START(Self start optional).
  • VERTICAL TYPES ENGINES.
  • FOUR STROKE ENGINES.
  • PETER TYPE DIESEL ENGINES.
  • GOVERNING CLASS B1.
  • FLYWHEEL WT. AS PER KIRLOSKAR STANDARDS.
  • EXPORT QUALITY LONG RUN.

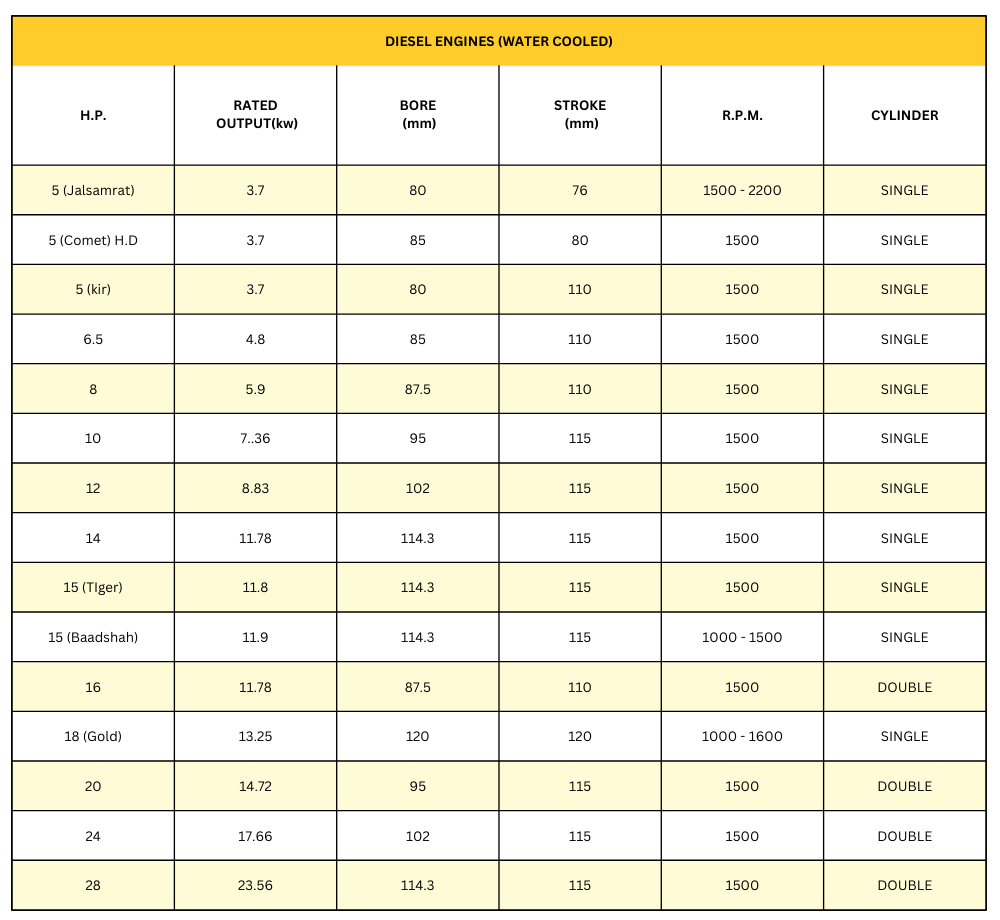

DIESEL ENGINES (WATER COOLED)
H.P. RATED
OUTPUT(kw)
BORE
(mm)
STROKE
(mm)
R.P.M. CYLINDER
5 (Jalsamrat) 3.7 80 76 1500 - 2200 SINGLE
5 (Comet) H.D 3.7 85 80 1500 SINGLE
5 (kir) 3.7 80 110 1500 SINGLE
6.5 4.8 85 110 1500 SINGLE
8 5.9 87.5 110 1500 SINGLE
10 7..36 95 115 1500 SINGLE
12 8.83 102 115 1500 SINGLE
14 11.78 114.3 115 1500 SINGLE
15 (TIger) 11.8 114.3 115 1500 SINGLE
15 (Baadshah) 11.9 114.3 115 1000 - 1500 SINGLE
16 11.78 87.5 110 1500 DOUBLE
18 (Gold) 13.25 120 120 1000 - 1600 SINGLE
20 14.72 95 115 1500 DOUBLE
24 17.66 102 115 1500 DOUBLE
28 23.56 114.3 115 1500 DOUBLE

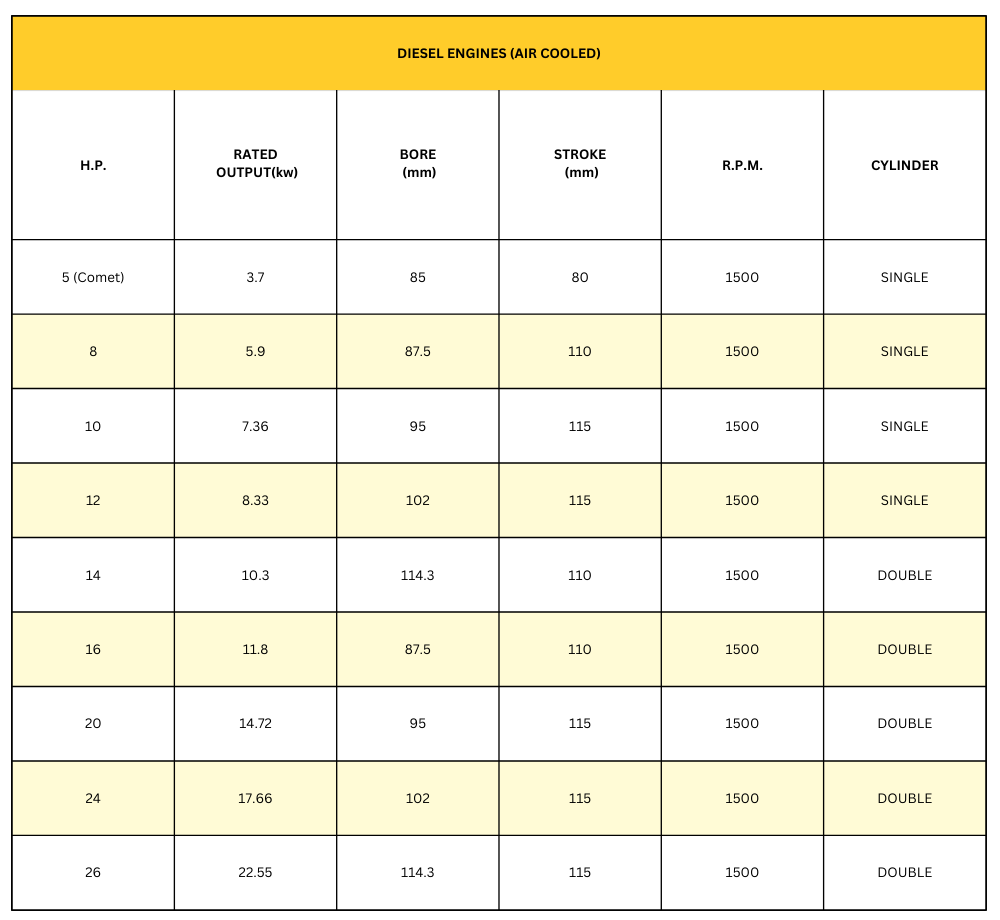

DIESEL ENGINES (AIR COOLED)
H.P. RATED
OUTPUT(kw)
BORE
(mm)
STROKE
(mm)
R.P.M. CYLINDER
5 (Comet) 3.7 85 80 1500 SINGLE
8 5.9 87.5 110 1500 SINGLE
10 7.36 95 115 1500 SINGLE
12 8.33 102 115 1500 SINGLE
14 10.3 114.3 110 1500 DOUBLE
16 11.8 87.5 110 1500 DOUBLE
20 14.72 95 115 1500 DOUBLE
24 17.66 102 115 1500 DOUBLE
26 22.55 114.3 115 1500 DOUBLE

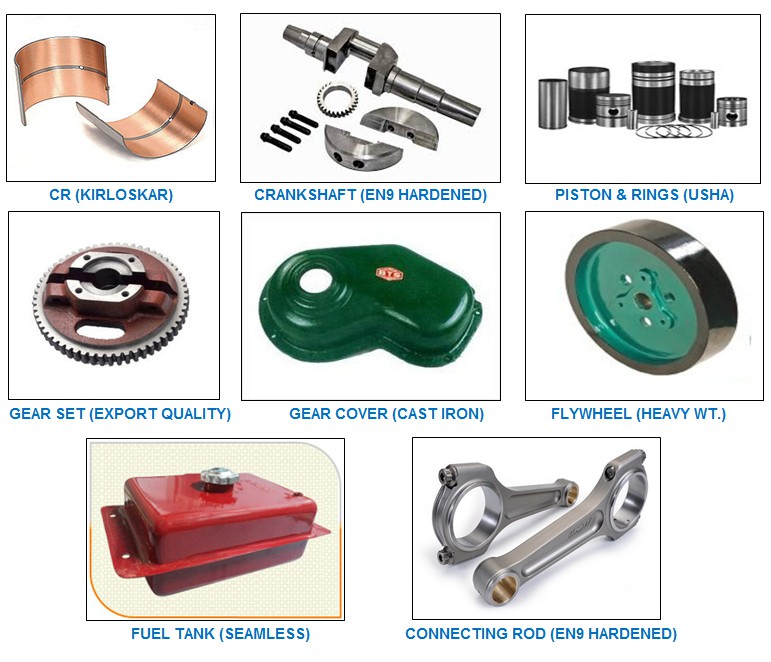

CR (KIRLOSKAR)

crankshaft (en9 hardended)

piston & rings (usha)

gear set (export quality)

gear cover (cast iron)

flywheel (heavy wt.)

fuel tank (seamless)

connecting rod (en9 hardended)

PRODUCT SPECIALITIES:

  • WE USE 100% BEST QUALITY SPARE PARTS IN OUR PRODUCT WHICH RESULTS TO 0% ERRORS WHILE RUNNINGIN THE FIELD.
  • FUEL INJECTION PUMPS IS USED OF BOSCH WHICH INCREASES THE LIFE OF ENGINE AND RESULTS INTO FUEL SAVING.
  • PISTON IS USED ONLY OF USHA WHICH IS NO. 1 IN THE WORLD.
  • OUR DIESEL ENGINES ARE TESTED FOR 4-6 HOURS ( EACH ENGINE ) BEFORE GOING INTO THE FIELD.
  • CNC MACHIES WE USES MAKES IT EASY FOR BETTER FINISHING AND ACCURACY.
  • HEAD, BODY, BLOCK AND OTHER CASTING PARTS ARE MADE ON CNC MACHINES AND AS PER KIRLOSKAR PATTERNS.
  • 100% GEAR COVER AND SIX HOLE PLATES ARE OF CAST IRON FOR 0% LEAKAGE.
  • FUEL TANKS ARE MADE FROM SEAMLESS WELDING TO MAKE THEM LEAKAGE FREE.
  • CR IS USE OF KIRLOSKAR COMPANY.
  • CRANK AND CONNECTING ROD ARE USED OF EN 9 HARDENED MATERIAL FOR BEST PERFORMANCE.
  • SPARE PARTS ARE AVAILABLE ALL THROUGHOUT THE GLOBE
    100% EXPORT QUALITY PRODUCT FOR LONG RUN.
